Lube Oil Filtration Solutions for 2-Stroke Engines

Wednesday, 19th June 2019

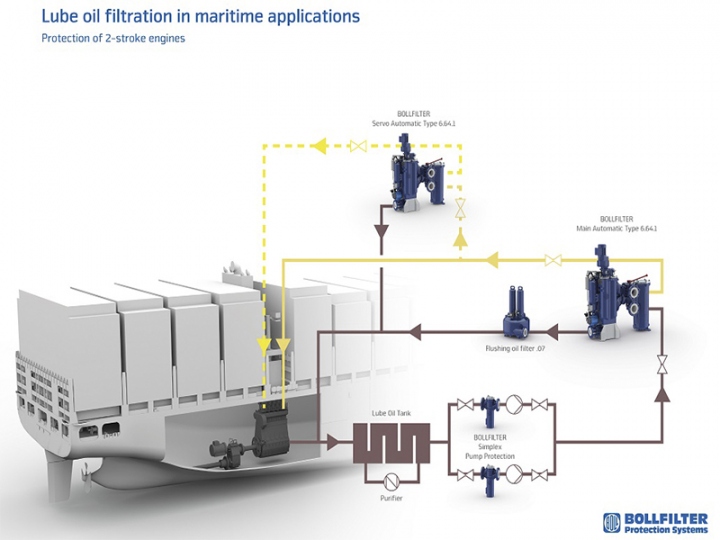

The system transports lube oil from the main tank to the engine. The system consists primarily of the supply pumps (redundant), pump protection filters, an automatic filter with a defined filtration rate, and a lube oil treatment system (optional). The lube oil is transported via the supply pumps, screened by the pump protection filters, through the automatic filter (fine filtration). The majority (approx. 95 %) of the filtered lube oil is supplied directly to the engine. The rest of the oil is filtered even further by an additional automatic filter and is used for the hydraulic power supply in two-stroke engines (common rail).

BOLLFILTER as pump protection

The pump protection filters, which are equipped with a coarse filter element, are located on the suction side of the supply pumps and protect the redundant pumps in order to guarantee a secure supply of lube oil.

Find out more about our pump protection filters by downloading our simplex filter Type 1.12.2 brochure or visit our product webpage: https://www.bollfilter.com/filters/detail/bollfilter-simplex-type-1122.html


BOLLFILTER as protection for two-stroke engines

The automatic backflushing filter type 6.64.1 cleans itself based on an adjustable period of time or by reaching a differential pressure due to the collection of contamination. In addition, this type of filter can be outfitted with a change over valve and attached by-pass filter (optional), which also ensures the supply of filtered lube oil while performing maintenance.


BOLLFILTER as protection for hydraulic applications in two-stroke engines

The automatic backflushing filter type 6.64.1, equipped with fine filter elements, is located in the open hydraulic system and helps to keep the concentration of particles in the lube oil at a low level for the entire engine.
This filter also cleans itself based on an adjustable period of time or by reaching a differential pressure due to the collection of contamination. In addition, this type of filter can be outfitted with a change over valve and attached by-pass filter (optional), which also ensures the supply of filtered lube oil while performing maintenance.

Find out more about our 6.64.1 filter by downloading the brochure or visit our product webpage: https://www.bollfilter.com/filters/detail/bollfilter-automatic-type-664-automatic-self-cleaning-filter-for-large-engines.html

Advantages of the BOLLFILTER
  • Space-saving design
  • Easy to install and retrofit
  • Precise degree of filtration
  • Reduced risk of engine failure
  • Reduced maintenance costs
  • Extended service life of engine components
For further details visit:https://www.bollfilter.com/applications/engines/marine-lube-oil-filtration-for-2-stroke-engines.html
