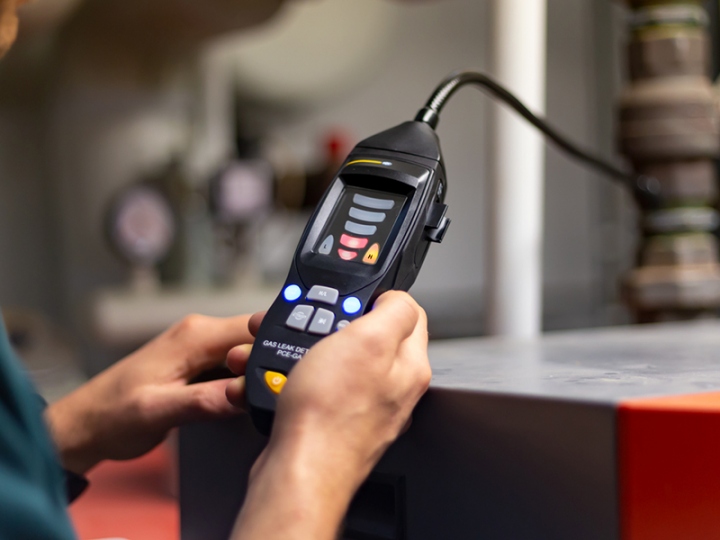

The PCE-GA 10 from PCE Instruments - a compact leak detector for combustible gases

Monday, 8th February 2021

The PCE-GA 10 leak detector was developed to detect and locate escaping flammable gases in systems, containers and pipes. The gas detection sensor head can be brought close to the examined parts even in confined spaces as it is connected to the device via a semi-rigid 500 mm long gooseneck supply cable.

The sensor by PCE Instruments UK LTD detects the following combustible gases:
Ammonia, benzene, ethane, ethanol, ethylene, formaldehyde, hexane, ISO butane, methane, propane, P-xylene, hydrogen sulphide, toluene and hydrogen and flammable compounds of these substances.

The hand-held device shows the presence and concentration of these flammable gases via five red LED bars arranged one above the other. In addition, audible and vibration alarms can be activated via the keys. Users are thus warned even if they cannot constantly look at the meter due to the conditions on site.

The PCE-GA 10 can be switched from high to low sensitivity and indicates the sensitivity selection by the left or right triangular LED. After switching on the leak detector in an uncontaminated area and when the automatic calibration is finished, it is recommended to search with high sensitivity first in order to be able to detect low concentrations. When flammable gases are detected, it is possible to switch to low sensitivity when the concentration is high, so that the location where the gas leaks can be narrowed down further.

The PCE-GA 10 works with a lithium-ion battery that can be recharged with the included charger. The sensor has a limited shelf life but can be easily replaced. Both the need to recharge the battery and to replace the sensor are indicated by the meter via warning lights.

Here is a brief description of the leak detector PCE-GA 10:
  • Mobile leak detector for combustible gases
  • Approx. 500 mm semi-flexible sensor cable
  • Optical alarm via red LEDs
  • Acoustic alarm up to 85 dB
  • Vibration alarm
  • Quick response time
  • Adjustable sensitivity
  • Automatic calibration
  • Interchangeable sensor
  • With mains adaptor for the rechargeable battery

The compact and easy-to-use gas leak detector PCE-GA 10 enables the simple and quick detection of many combustible gases. It can therefore be used in companies as well as in private areas. The gas detector warns of gas accumulations in buildings, on vehicles and machines and on systems and equipment where flammable gases can escape. Danger can thus be detected in time and appropriate countermeasures can be taken.

More information can be found here:

https://www.pce-instruments.com/english/measuring-instruments/test-meters/leak-detector-kat_41789.htm
